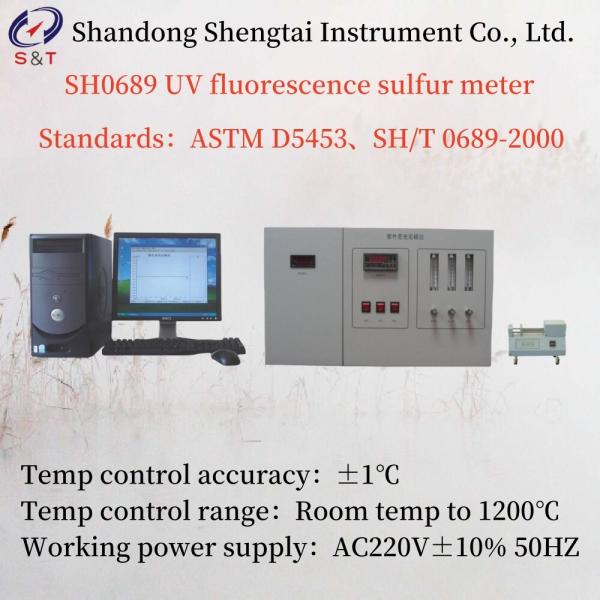

SH0689 UV fluorescence sulfur meter
SH0689 Ultraviolet Fluorescence Sulfur Analyzer uses ultraviolet
fluorescence method to determine the principle.
In line with ASTM D5453, SH/T 0689-2000 and other standards,
suitable for the determination of total sulfur content in crude
oil, distillate oil, liquefied petroleum gas, plastics,
petrochemical products, food and other.
After the sample was introduced into the high temperature cracking
furnace, the sample underwent cracking oxidation reaction.
At a high temperature of about 1000℃, the samples were completely
gasified and oxidized, and the sulfur compounds in them were
quantitatively converted to sulfur dioxide.
Ultraviolet Fluorescence ASTM D5453 Sulfur Analyzer Biodiesel
Sulfur Content Tester
Reaction gas carried by carrier gas, through the membrane dryer to
remove the moisture, into the reaction chamber.
Sulfur dioxide is irradiated by ultraviolet light at certain
wavelengths and absorbs this radiation to divert some electrons
into high-energy orbits.
Once the electrons have returned to their original orbitals, the
excess energy is released as light, detected by a photomultiplier
tube at a specific wavelength, emitting fluorescence that is
completely specific to the sulfur and proportional to the amount of
sulfur in the original sample.
After being amplified by micro-current amplifier and processed by
computer, it can be converted into electrical signal proportional
to light intensity, and the sulfur content of the corresponding
sample can be calculated by measuring its size.
Scope of application: It is suitable for the determination of total
sulfur content in gasoline, diesel oil, lubricating oil, crude oil,
distillate oil, liquefied petroleum gas, gas, natural gas,
plastics, petrochemical products, food, coal and so on.
Compliance with standards: ASTM D5453, SH/T 0689-2000 and other
standards.
(It meets the testing standard requirements of national five
national six gasoline diesel)
ASTM D5453 Ultraviolet Fluorescence UV Sulfur Analyzer
Lab Testing Machine Widely Use for Sulfur Content in Diesel by UV
Fluorescence (ASTM D5453)
Sulfur Content in Diesel Oil Analyzer by UV Fluorescence
ASTM D5453 D4629 Total Low Sulfur Content in Oil Test Machine
ASTM D5453 Trace Sulfur Content Analyzer in Hydrocarbon Samples
Technical Parameters
| Measurement range | 0.1mg/L~10000mg/L~% |
| Sample state can be measured | Solid, liquid, gas(corresponding sample injector is optional) |
| Standard | ASTM D5453 SH/T 0689-2000 |
| PMT high voltage range | DC400V~900V(according to the level of the measured concentration,
set the required value through the operation system.) |
| Temperature control range | Room temperature to 1200℃ |
| Temperature control accuracy | ±1℃ |
| Repeatability error | 1.0mg/L＜X≤10mg/L, Cv≤±10% 10mg/L＜X Cv≤±5% |
| Configuration | Host (data acquisition, control system), cracking furnace,
autosampler and computer (operating software included). |
| Host size: 550 ×560× 200 (mm) host weight : 9kg |
| Temperature control size: 550 ×560× 400 (mm) temperature control
weight: 10kg |
ASTM D5453 ASTM D7183 Low detection limit of UV fluorescence sulfur
analyzer
Sulfur in Oil Analyzer by Ultraviolet Fluorescence ASTM D5453
Fluorescence Sulfur-in-Oil Analyzer Ultra Low Sulfur Analysis by
ASTM D5453 UVF Method
The main features
1. computer control operation, can realize man-machine dialogue,
data, peak shape can be automatically stored and printed.
2. The operating software can be connected with LIMIS system to
realize automatic data transmission.
3. The instrument adopts a new type of quartz cracking tube, which
can increase the injection volume and reduce the measurement error.
4. the cooling fan automatic switch, save the trouble of waiting
for the sample shutdown, save time and effort.
5. The darkroom system adopts the latest foreign technology, and
the key components adopt imported detection components, which
improves the detection accuracy of the instrument
6. the instrument adopts imported membrane dryer to absorb
moisture, saving the trouble of replacing magnesium perchlorate
frequently, and reducing the problem of air leakage.
7. the use of computer control temperature, improve the instrument
temperature control precision, and not easy to overtemperature.
8. the use of air cooling instead of water cooling, save water
resources.
9. you can take the existing calibration curve with standard sample
calibration for sample analysis.
Technical parameters
Determination range: 0.1 ~ 10000mg/L (PPM)
Lower detection limit: 0.1ppm (sulfur)
Repeatability error: 1.0mg/L < X≤10mg/L, CV ≤±10%
10 mg/L < X Cv plus or minus 5% or less
Air source requirements: high purity oxygen: more than 99.98%;
High purity argon: more than 99.98%
Temperature control range: room temperature ~ 1200℃
Temperature control accuracy: ±1℃
Working power supply: AC220V±10% 50Hz
Environmental requirements: temperature 15 ~ 40℃;
Humidity of 85% or less
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | |
| 2 | Sampler | set | 1 | |
| 3 | computer | set | 1 | With 232 serial port |
| 4 | Quartz tube | piece | 1 | provided by the installer |
| 5 | Elbow | piece | 1 | provided by the installer |
| 6 | Pipe joint clamp | piece | 1 | |
| 7 | Quartz tube fixing clip (ceramic) ring | piece | 2 | |
| 8 | Polytetrafluoroethylene pipe | meter | 10 | |
| 9 | Silicone rubber tube (inner diameter) Ф5 | meter | 0.2 | |
| 10 | Ф3 | meter | 0.2 | |
| 11 | Membrane dryer | piece | 1 | Imported from Japan |
| 12 | power cord | piece | 2 | |
| 13 | Power line of cracking furnace | piece | 1 | |
| 14 | Communication cable | piece | 1 | |
| 15 | Air line pressing cap | piece | 2 | |
| 16 | Silicone rubber pad | piece | 20 | |
| 17 | Sampling probe(10ul,25ul) | piece | 各2 | |
| 18 | standard sample | box | 4 | Installed with |
| 19 | Fuse tube 20A | piece | 4 | |
| 20 | 2A | piece | 4 | |
| 21 | Warranty card certificate | copy | 1 | |
| 22 | instruction manual | copy | 1 | |
Approximate conversion formula
1%=10000PPm
1ppm=1mg/L
