    Power Consumption ≤1000W Automatic Carbon Residue Tester AC220V±10% 50Hz

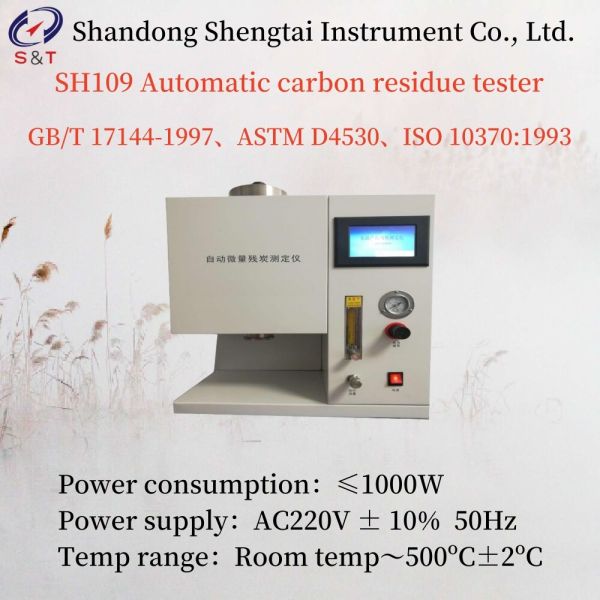

    SH109 Automatic carbon residue tester

    SH109 automatic carbon residue tester is designed and manufactured in accordance with the standard requirements of GB/T 17144-1997 "carbon residue determination of petroleum products (trace method)", "ASTM D4530" and "ISO 10370:1993".

    It has the characteristics of beautiful appearance and convenient operation.

    The test results are consistent with those of GB/T268(Conrad's method), and it is also suitable for the detection of petroleum products with a carbon residue value of less than 0.10(m/m) and composed of distilled oil.

    Automatic Carbon Residue Tester (Micromethod) GB/T17144-1997

    Automatic Carbon Residue Tester (Micromethod)

    ASTM D4530 Micro Method Automatic Carbon Residue Tester

    Automatic ASTM D4530 Micro Method Fuel Carbon Residue Tester

    Mcrt Micro Method Automatic ASTM D4530 Fuel Carbon Residue Tester

    Micro Method Automatic ASTM D4530 Fuel Carbon Residue Tester

    ASTM D4530 Micro Method Automatic Marine Fuel Carbon Residue Tester

    Power Consumption ≤1000W Automatic Carbon Residue Tester AC220V±10% 50Hz

    performance characteristics

    1. Adopt 5 color LCD touch screen automatic calculation, optional printing function, main board with communication interface.

    2. The whole heating process program control, automatic control of heating rate, automatic control of the set temperature, stable temperature control.

    3. Display instrument is in a state of "purge", "temperature rise" and "constant temperature"

    4. Adopt embedded operating system, temperature rise, flow automatic control, real-time display experiment process

    5. Can edit the input sample tube, sample quality, automatic calculation of carbon residue value.

    6. Can store hundreds of groups of historical data, convenient query.

    Historical data can be queried by date


    Main technical parameters

    Power consumption

    ≤1000W

    Temperature range

    Room temperature ~ 500ºC ± 2ºC

    Temperature control

    According to standard procedures

    Temperature heating rate

    15ºC/min(customizable)

    Waste liquid collection bottle

    200ml

    Purge gas

    Nitrogen 600 ~ 150mL / min,automatic switching

    The pressure adjustment range

    0kPa(0kg/cm2) ~ 392kPa(4kg/cm2)

    The measurement range

    0.10%(m/m) ~ 30.0%(m/m)

    Flow meter

    100 ~ 1000mL/min

    Power supply

    AC220V ± 10%,50Hz(Customizable)

    Dimensions

    230×320×425mm

    The size of the combustion chamber

    Φ 85 mm × 105 m

    Set time error

    < 0.1 s

    Gas consumption

    standard nitrogen bottle with pressure of 14700kPa(150kg/cm2)

    Overall dimension: 230×320×425mm weight:19kg

    Power Consumption ≤1000W Automatic Carbon Residue Tester AC220V±10% 50Hz

    Packing list

    S/N

    Name

    Unit

    Quantity

    Remarks

    1

    Micro carbon residue tester

    set

    1


    2

    Small sample test tube

    piece

    10


    3

    Large sample test tube

    piece

    10


    4

    Sample tube rack

    piece

    1


    5

    Power cable

    piece

    1


    6

    instructions

    copy

    1


    7

    Certificate warranty card

    copy

    1
