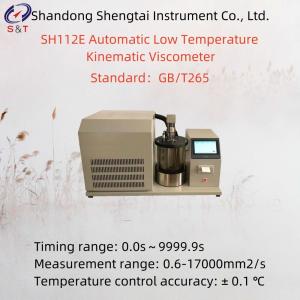

SH112E Automatic Low Temperature Kinematic Viscometer

The SH112E low-temperature petroleum kinematic viscometer complies with the requirements of the national standard GB/T265 "Determination of kinematic viscosity of petroleum products and algorithm for dynamic viscometers". Two viscosity sticks can be placed simultaneously for experimentation.

Kinematic viscosity: It is the time it takes for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity at a constant temperature. The product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid measured at that temperature

The main technical indicators and characteristics are as follows:

● The constant temperature bath is a low-temperature double-layer Dewar flask, with uniform temperature distribution inside the bath and good temperature control effect.

● This instrument uses a precision digital temperature controller to control the temperature inside the bathtub, and the actuator adopts a solid-state relay (SSR), which has the characteristics of accurate temperature control accuracy, no contacts, no noise, no sparks, fast action, and long service life.

● The capillary gauge card adopts a three-point vertical type, which is flexible and convenient to operate, and the clamping is reliable.

● Using a color touch screen with Chinese display and no labeled buttons,

● Imported PT100 temperature sensor, adjustable from -40 ℃ to 60 ℃

● Ability to store the constant of the capillary tube in case of power failure

● Manual layout, manual cleaning, and automatic calculation of viscosity values.

● Temperature control point: -40 ℃ -60 ℃ can be set arbitrarily

● Temperature control accuracy: ± 0.1 ℃;

● Measurement range: 0.6-17000mm2/s

● Display mode: digital display;

● Timing range: 0.0s～9999.9s

● Timing accuracy: 60 minutes shall not exceed ± 0.01%.

● Heating power: 750W;

● Power supply: AC 220V ± 10%, 50HZ ± 5%;

● Environmental temperature: 5 ℃ -40 ℃;

● Environmental humidity: ＜ 85%；

● USB data output function, import to computer in Excel format or CSV format

● Dimensions: 720 * 450 * 680mm;

● Weight: 58Kg.

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

Consumables that customers need to bring themselves: water or alcohol. Strictly according to national standards, the viscosity tube needs to be cleaned with the following reagents before the experiment: solvent oil or petroleum C₂H₅OC₂H₅

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list for fully automatic viscosity tester
