    Rated Power 2000W Automatic Medication Dual Use Kinematic Viscosity Meter AC220V

    Ask Lasest Price
    Brand Name : Shandong Shengtai Instrument
    Model Number : ST204C
    Certification : 0633,<911>
    Payment Terms : T/T
    Supply Ability : 10000 sets/ year
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Rated Power 2000W Automatic Medication Dual Use Kinematic Viscosity Meter AC220V

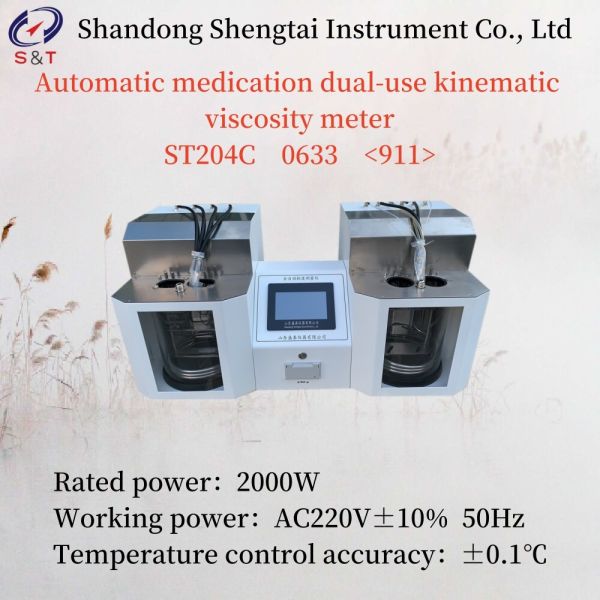

    ST204C Automatic Pinstar & Ubbelohde kinematic viscometer tester

    ST204C automatic Pinstar & Ubbelohde kinematic viscosity tester applies to the general principles of the 2020 "China pharmacopoeia" 0633 first flat capillary viscosity measurement method and second ubbelohde capillary viscometer method and <911> VISCOSITY-CAPILLARY VISCOMETER METHODS to determine the method to design and manufacture, this law is relatively method is used to measure a certain volume of liquid under the action of gravity through the time needed for capillary, for movement of the fluid viscosity.

    ST204C automatic drug kinematic viscometer has a series of automatic functions, such as automatic constant temperature, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, automatic drying, etc. The test can be completed with a single injection and a click of starting.

    Rated Power 2000W Automatic Medication Dual Use Kinematic Viscosity Meter AC220V

    Main technical parameters

    ● Compliance standard: general rule 0633 of Chinese Pharmacopoeia in 2020

    ● Temperature measurement range: room temperature - 100 ℃ (high temperature can be customized to 150 ℃ or low temperature 0 ℃);

    ● Temperature control accuracy: 0.1 ℃

    ● Display mode: human inductive touch screen

    ● Operation process: put the sample into constant temperature, detect, calculate, clean the viscosity tube, dry, print the report automatically

    ● Viscosity tube clamp: made of 304 stainless steel, high and low temperature resistant graphite sliding bearing device

    ● It is equipped with LED soft light, which is evenly filled and easy to observe.

    ● Measuring range: Ubbelohde viscosity measuring range: 0.6-1000mm2/s

    Pinot viscosity measurement range: 0.6-17000mm2/s

    ● Timing range: 0.0s~999.9s;

    ● Timing accuracy: no more than ± 0.01% for 60min;

    ● Data memory: the memory of microcomputer instrument can be expanded to 16G

    ● Detection method: photoelectric sensor detection

    ● Result output: at the same time, it can be equipped with U disk output function, and output to PC terminal for long-term storage

    ● Remote upgrade: with TCP network transmission function, software remote upgrade can be carried out later

    ● Account management: according to the password setting account hierarchical management, can set the main account and sub-account

    ● Input extension: select barcode gun to scan and input sample information (optional)

    ● Data storage: U disk data export function

    ● Data sharing: access to the LIMS system of the group company (optional)

    ● Printer: equipped with micro printer

    ● Power consumption of the whole machine: not more than 2000W.

    ● Working power supply: AC220V ± 10%; 50Hz

    ● Size and weight: 850 * 380 * 550mm 38kg

    MethodsGeneral rule 0633 of 2020 Chinese Pharmacopoeia
    General temperature control rangeroom temperature ~ 100.0℃(high temperature can be customized to 150 ℃ or low temperature 0 ℃);
    Temperature control accuracy±0.1℃;
    Timing range0.0s ~ 999.9s;
    Timing accuracyno more than ±0.01% within 60min;
    Number of samples2 sets of capillary viscometers (viscosity coefficient range shall be indicated when ordering);
    Service environmentAmbient temperature 10℃ ~ 35℃, relative humidity ≤ 85%;
    Temperature sensorPt100 platinum resistance
    Rated power2000W
    Working power supply:AC220V ± 10%; 50Hz

    Size: 850 * 380 * 550mm weight: 53kg


    Rated Power 2000W Automatic Medication Dual Use Kinematic Viscosity Meter AC220V

    Packing list

    S/NNameQuantityUnitRemarks
    1Host1set
    2Pin's special viscosity tube4pieceComply with the pharmacopoeia
    3Uhl special viscosity tube4pieceComply with the pharmacopoeia
    4Special viscometer support1set
    5Cleaning fluid conduit2piece
    6Electric attractor1set
    7power cord1piece
    8Certificate warranty card1copy
    9instructions1copy
    10Printing paper2piece
