Brand Name : | Shandong Shengtai Instrument |
Model Number : | SD261 |
Certification : | GB261-2008、ASTM D93、ISO-2719、ASTM D93、Pensky-Marten closed cup method |
Payment Terms : | T/T |
Supply Ability : | 10000 sets/year |
Delivery Time : | 7-15 work days |

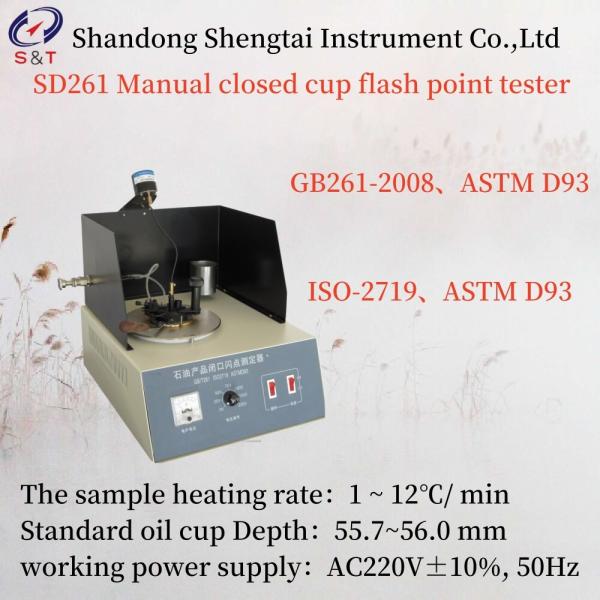

SD261 Manual closed cup flash point tester
SD261 closed mouth flash point meter is designed and manufactured in accordance with the requirements of the national standard GB/T 261-2008 "determination of flash point Binsky-Martin closed mouth cup method". It is suitable for the determination of the flash point of petroleum product samples with a flash point above 40℃ by the method specified in the GB/T 261-2008 standard.
GB/T 261-2008manual Binsky-Martin closed cup flash point tester for laboratory testing
GB/T 261-2008manual Binsky-Martin closed cup flash point tester for oil testing
Portable Manual Binsky-Martin Closed Cup Flash Point Tester Price
Product model | SH105B |
Test sample | Petroleum,electric power,chemicals,products |
Compliance with standards | GB261-2008,ASTM D93 Conforming to ISO-2719,ASTM D93,Pensky-Marten closed cup method |
Simple technical features or parameters | Air source ignition, manual timing and visual observation |
I. Main technical features
Heating power continuous, stepless adjustable.
II. Main technical parameters and indicators
Working power supply | AC220V±10%, 50Hz. |
Heating device | heating power from 0 ~ 600W continuously adjustable. |
The sample heating rate | 1 ~ 12℃/ min. |
Standard oil cup | Inner diameter: 50.7 ~ 50.8 mm. Depth: 55.7 ~ 56.0 mm. Test capacity notch depth: 33.9 ~ 34.3 mm. Test capacity: about 70 ml |
Ignition device | ignition source: gas Firearm aperture: 0.8mm |
Thermometer | bar mercury thermometer, in line with GB/T 261-2008 standard requirements. |
Packing list:
The host | 1 |
Oil cup | 1 |
Thermometer | 1 |
Instructions | 1 |
Certificate warranty card | 1 |
Customers need to provide their own: coal gas source and coal gas source required pressure reducing valve
![]() |
