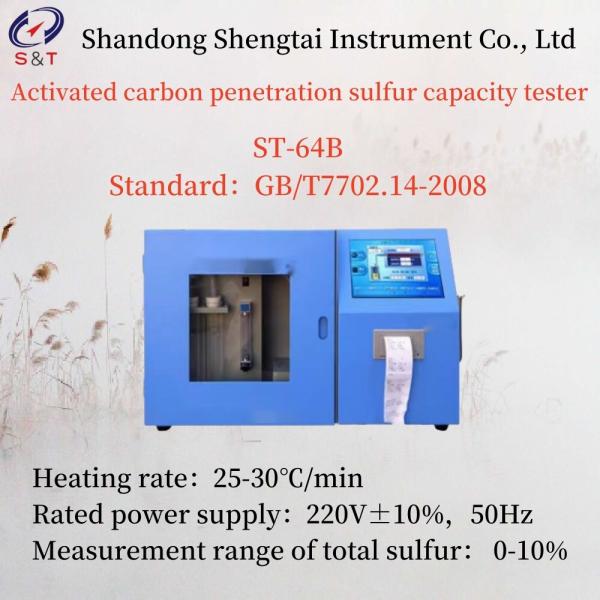

ST-64B Activated carbon penetration sulfur capacity tester
ST-64B activated carbon penetration capacity testing device is
developed in accordance with the national standard GB/T7702.14-2008
"Test methods for coal based granular activated carbon -
Determination of sulfur capacity". It is suitable for testing the
penetration capacity of coal based granular activated carbon, as
well as for testing the penetration capacity of other types of
activated carbon.
Experimental principle:
The test sample is burned in a purified air flow at a high
temperature of 1050 ℃, and various forms of sulfur in the coal are
decomposed and carried to the electrolysis cell by the air flow to
combine with water to generate H2SO3. Due to its disruption of the
dynamic equilibrium of the original iodine iodine ion pairs in the
electrolysis cell, the instrument immediately outputs a current to
electrolyze potassium iodide solution to generate iodine, in order
to restore the original dynamic equilibrium, which is the Coulomb
titration in GB/T214-1996. The amount of current consumed to
restore the original dynamic equilibrium is related to the sulfur
decomposed during combustion in the laboratory sample, which can be
measured and calculated by a microprocessor
Technical parameters
lMeasurement range of total sulfur: 0-10%
lThe sample combustion analysis time is 3-8 minutes, and the
titration endpoint is automatically determined and returned.
lTemperature control: 500-1150 degrees Celsius, controllable ± 3 ℃.
lTemperature measurement: accuracy level 0.5;
lThe heating element is a silicon carbon tube, with a
high-temperature zone length of ≥ 90 millimeters.
lThe experimental temperature is 1050 ℃± 5 ℃ (the temperature can
be adjusted as needed).
lHeating rate: 25-30 ℃/min, up to 1050 ℃ in about 30 minutes.
lElectrolytic cell: with a volume of 450 milliliters and a platinum
metal electrode.
lThe stability of the instrument: It enters a stable state within 1
minute of starting up.
lRated power supply: 220V ± 10% 50Hz
| Measurement range of total sulfur | 0-10% |
| Temperature control | 500-1150 degrees Celsius,controllable ± 3℃ |
| Heating rate | 25-30℃/min, up to 1050 ℃ in about 30 minutes |
| Temperature measurement | accuracy level 0.5 |
| Rated power supply | 220V ± 10% 50Hz |
ST-64B activated carbon penetration capacity testing device is
developed in accordance with the national standard GB/T7702.14-2008
"Test methods for coal based granular activated carbon -
Determination of sulfur capacity". It is suitable for testing the
penetration capacity of coal based granular activated carbon, as
well as for testing the penetration capacity of other types of
activated carbon.
Experimental principle:
The test sample is burned in a purified air flow at a high
temperature of 1050 ℃, and various forms of sulfur in the coal are
decomposed and carried to the electrolysis cell by the air flow to
combine with water to generate H2SO3. Due to its disruption of the
dynamic equilibrium of the original iodine iodine ion pairs in the
electrolysis cell, the instrument immediately outputs a current to
electrolyze potassium iodide solution to generate iodine, in order
to restore the original dynamic equilibrium, which is the Coulomb
titration in GB/T214-1996. The amount of current consumed to
restore the original dynamic equilibrium is related to the sulfur
decomposed during combustion in the laboratory sample, which can be
measured and calculated by a microprocessor
