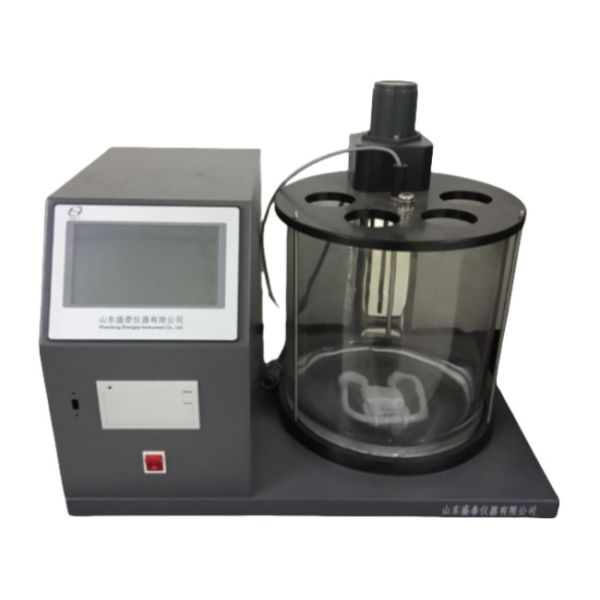

SH112 Petroleum Kinematic Viscometer
SH112 Petroleum Kinematic Viscometer This instrument complies with
the requirements of the national standard GB/T265 "Determination of
Kinematic Viscosity of Petroleum Products and Algorithm for Dynamic
Viscometers". It can simultaneously hold four viscosity tubes for
experiments, and can also be used as a high viscosity constant
temperature water bath for other experiments. Adopting a color LCD
large screen with Chinese display, no labeled buttons, temperature
measurement using precision platinum resistance PT100, setting
freely between 10-100 ℃, automatic switching between main and
auxiliary heaters, and the ability to store the constant of the
capillary tube in case of power failure. Automatically calculate
viscosity value, this product also complies with ASTM D445 standard
Kinematic viscosity: Determine the gravity flow under a certain
volume model at a constant temperature, and measure the viscosity
of the liquid by calibrating a glass capillary viscometer. The
constant of the capillary viscometer flows over time, and the
kinematic temperature of the product is used to measure the
viscosity of the liquid
| Product model | SH112 |
| Product Name | Petroleum Kinematic Viscometer |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | heavy oil, crude oil, dark petroleum and other petroleum products |
| Compliant with standard | GB/T265 "Determination of kinematic viscosity of petroleum products
and algorithm for dynamic viscometer" |
| Simple technical features or parameters | It can simultaneously place four viscosity tubes and conduct
experiments, and can also be used as a high viscosity constant
temperature water bath for other experiments. Manual cleaning of
test tubes and automatic calculation of viscosity values |
The main technical parameters and characteristics are as follows:
● The constant temperature bath is a circular glass cylinder with
uniform temperature distribution inside and good temperature
control effect (can be made into double cylinders).
● This instrument uses a precision digital temperature controller
to control the temperature inside the bathtub, and the actuator
adopts a solid-state relay (SSR), which has the characteristics of
accurate temperature control accuracy, no contacts, no noise, no
sparks, fast action, and long service life.
● The capillary gauge card adopts a three-point vertical type,
which is flexible and convenient to operate, and the clamping is
reliable.
● The viscosity tube can be selected as either a Pinter viscosity
tube or an Ubbelohde viscosity tube according to the needs.
● Equipped with USB input function, it can output data to the PC
for long-term storage (optional).
● Storage method: The experimental results can store 199 sets of
historical data for easy retrieval (optional);
● Output format: The output format of the result USB drive is CSV
or Excel (optional).
● Temperature control point: Room temperature -100 ℃ can be set
arbitrarily;
● Temperature control accuracy: ± 0.1 ℃;
● Display mode: digital display;
● Number of holes: 4 holes
● Stopwatch timing: 0.05s ～ 99min99.99s
● Heating power: 1800W
● Power supply: AC 220V ± 10% 50HZ ± 5%
● Dimensions: 600 × 340 × 350mm
● Weight: 15Kg
| Thermostatic bath specifications | circular glass cylinder |
| Execution element | Solid state relay SSR |
| Capillary tube meter card | three-point vertical type |
| Viscosity tube | Pincus/Ubbelohde |
| Input function | USB input (optional) |
| Data storage | 199 sets (optional) |
| Output format | CSV/Excel (optional) |
| Temp control point | room temp -100 ℃ Any setting |
| Temp control accuracy | ± 0.1 ℃ |
| Display mode | digital display |
| Number of holes | 4 holes |
| Stopwatch timing | 0.05s ～ 99min99.99s |
| Heating power | 1800W |
| Power supply | AC 220V ± 10% 50HZ ± 5% |
| Dimensions | 600mm × 340mm × 350mm |
| Weight | 15Kg |
● Customers are required to provide their own consumables: water or
glycerin. Strictly according to national standards, the viscosity
tube needs to be cleaned with the following reagents before the
experiment: solvent oil or petroleum C5H12.
Note: The appearance pictures, dimensions, volume, and weight of
the instrument are for reference only. If there are any updates to
the instrument, there may be slight changes without prior notice.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Specialized thickened sealed glass cylinder | 1 | Piece | |
| 3 | Water bath top cover component | 1 | Set | |
| 4 | Control cable | 1 | Strip | |
| 5 | Fuse tube | 1 | Piece | |
| 6 | Capillary viscometer | 4 | Piece | |
| 7 | Operation instructions | 1 | Copy | |
| 8 | Ear suction ball | 1 | Piece | |
| 9 | Packing list | 1 | Copy | |
| 10 | Certificate of conformity | 1 | Copy | |
