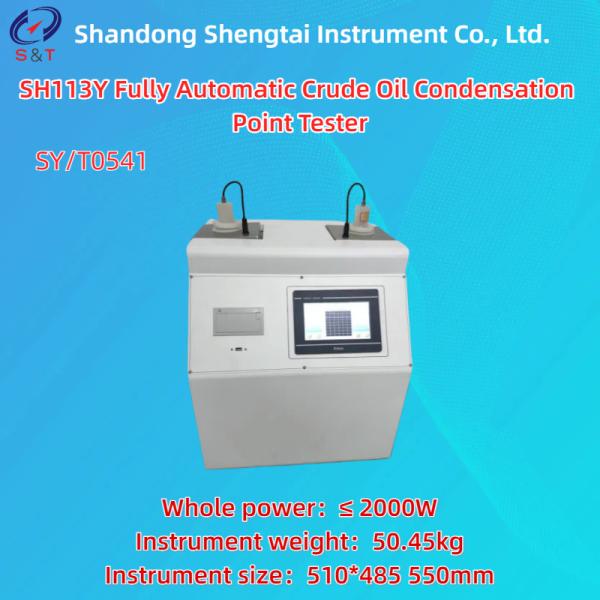

SH113Y Fully Automatic Crude Oil Condensation Point Tester

The SH113Y fully automatic crude oil pour point analyzer is designed and manufactured based on the SY/T0541 crude oil pour point measurement method. It adopts modern advanced technology and integrates mechanical, optical, electronic, and computer technologies to automatically complete the testing of the pour point of petroleum products. This instrument uses photoelectric detection technology, glass test tube automatic tilting method, and imported compressor refrigeration system to ensure the required refrigeration depth.

Technical performance parameters:

● Compliant with standard: SY/T 0541

● Temperature measurement range: -40 ～ 70 ℃

● Temperature control accuracy: 0.1 ℃

● Number of test samples: 2 channels

● Number of bath slots: Dual temperature dual bath

● Adopting a color LCD large screen display, a fully Chinese human-machine dialogue interface, and an unmarked keyboard

Simulate and track the function curve of temperature and test time.

● Cooling method: Compressor cooling

● Detection method: photoelectric sensor detection

● Tilting method: Glass test tube automatically tilts

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

● Data storage: USB data export function

★ Data sharing: can be integrated into the Limis system of the group company (optional)

● Printer: equipped with a micro printer

● Power consumption of the whole machine: not exceeding 2000W

● Working power supply: AC220V ± 10% 50Hz

● Instrument size: 650 * 480 * 620mm

● Instrument weight: 75kg

● Packaging size: 690 * 520 * 660mm

● Packaging weight: 80kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
