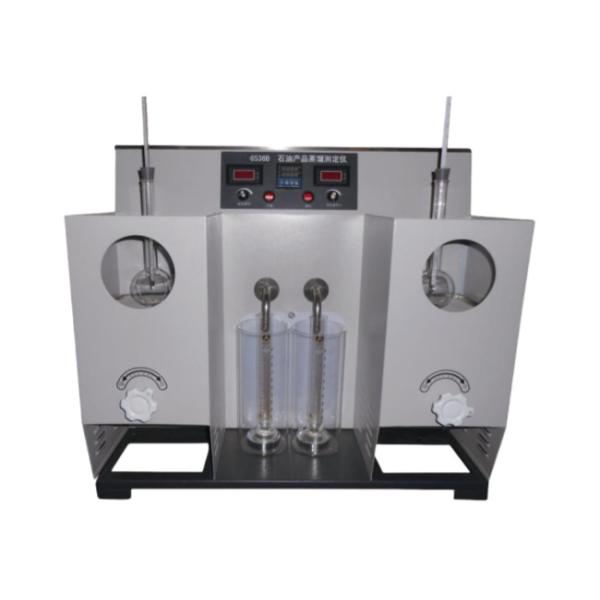

SD6536A Petroleum Product Distillation Tester (Dual Hole)
The SD6536A Petroleum Product Distillation Boiling Range Tester
(Dual Hole) is designed and manufactured in accordance with the
requirements specified in the Chinese standards GB/T6536 "Petroleum
Product Distillation Determination Method" and GB/T7534-2004
"Determination of Boiling Range of Volatile Organic Liquids for
Industrial Use"
Suitable for distillation determination of gasoline, aviation
gasoline, jet fuel, solvents with special boiling points, naphtha,
diesel, distillate fuels, and similar petroleum products.
Distillation range refers to the temperature range from the initial
boiling point to the final boiling point, which represents the
evaporation characteristics obtained by distilling oil products
under specified conditions.
Boiling range: The temperature at which the first drop of liquid
begins to drip from the condenser tube during distillation is the
initial distillation temperature; The temperature near the end of
distillation is the final distillation temperature, and the range
between the two temperatures is the boiling range
| Compliant with standards | GB/T6536 GB/T7534 |
| Testing samples | petroleum products chemical products |
| Test results | Mainly test the distillation range of petroleum products and the
boiling range of chemical products |
| Product model | SD6536A |
Main technical parameters
| Working power supply | AC220V ± 10% 50Hz |
| Heating power of electric furnace | 1000W × 2 |
| Measuring cylinder volume | 100 mL |
| Graduated cylinder | 1 mL |
| Distillation flask | 125mL, in accordance with the requirements of GB/T6536. |
| Temp gauge | fully immersed rod type |
| Scale range of thermometer | (-2~+300) ℃ and (-2~+400) ℃ |
| Scale division of thermometer | 1 ℃ (thermometer can be selected according to needs) |
| Material of electric furnace activity board | silicon carbide board |
| Electric furnace movable plate aperture | φ 38mm, φ 50mm |
| Temp controller temp control range | (room temp~400) ℃ |
| Temp control accuracy of thermometer | ± 0.5 ℃ |
| Temp display mode | LED digital display |
| Number of test holes | double holes |
| Dimensions | 760 × 430 × 500mm |
| Instrument weight | 28kg |
● Working power supply: AC220V ± 10% 50HZ
● Heating power of electric furnace: 1000W × 2.
● Measuring cylinder volume: 100 mL
● Graduated cylinder: 1 mL
● Distillation flask: 125mL, in accordance with the requirements of
GB/T6536.
● Temperature gauge: fully immersed rod type, with two scale ranges
of (-2~+300) ℃ and (-2~+400) ℃, with a scale of 1 ℃ (the
temperature gauge can be selected according to needs).
● Electric furnace movable plate: made of silicon carbide plate,
with hole diameters of φ 38mm and φ 50mm respectively.
● Temperature controller:
① Temperature control range: (room temperature~400) ℃ can be set
arbitrarily.
② Temperature control accuracy: ± 0.5 ℃
③ Temperature display mode: LED digital display
● Number of test holes: double holes
● Dimensions: 760 × 430 × 500mm
● Instrument weight: 28kg
Note: The appearance pictures, dimensions, volume, and weight of the
instrument are for reference only. If there are any updates to the
instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following
quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national
quality standards, and have a manufacturer's certificate of
conformity;
----The materials and main components provided meet the technical
requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one
year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument
quality issues that occur during the warranty period. Due to
equipment malfunction caused by the user's responsibility, we are
responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime
maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs
maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Distillation flask (125ml) | 2 | Piece | |
| 3 | Aquarium | 2 | Piece | |
| 4 | Silicone stopper | 4 | Piece | |
| 5 | Silicon carbide board | 2 | Piece | Aperture diameter: 38 mm, 50 mm |
| 6 | Measuring cylinder (100ml) | 2 | Piece | |
| 7 | Test platform | 2 | Piece | |
| 8 | Power line | 1 | Strip | |
| 9 | Thermometer | 2 | Piece | |
| 10 | Fuse tube | 1 | Piece | 10A |
| 11 | operation instructions | 1 | Copy | |
| 12 | Packing list | 1 | Copy | |
| 13 | Certificate of conformity | 1 | Copy | |
