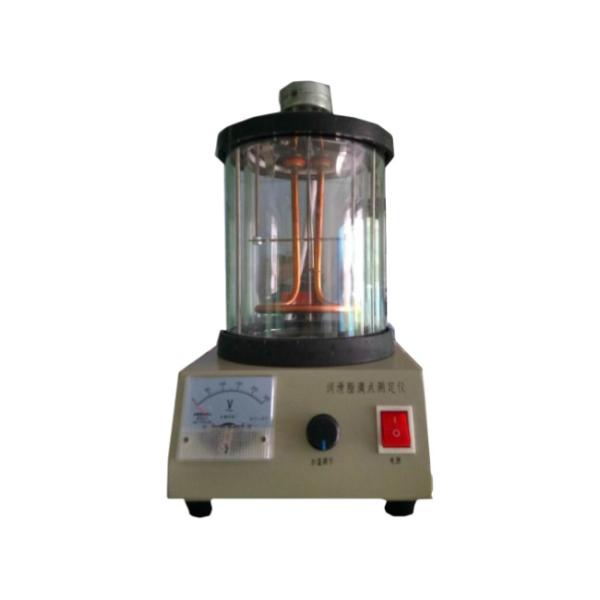

SD-4929A Lubricant Drop Point Tester (Oil Bath)

The SD4929A lubricant drop point measuring instrument is designed and manufactured according to the requirements of the Chinese standard GB/T 4929 "Method for Measuring the Drop Point of Lubricating Greases", and is suitable for measuring the drop point of lubricating grease according to the test method specified in GB/T4929 standard.

Purpose: This instrument is suitable for measuring the drop point of lubricating grease according to GB/T4929, ISO2176, ASTMD566, TP31, and the "Method for Determining the Drop Point of Lubricating Greases".

Drip point refers to the lowest temperature at which lubricating grease melts and begins to drip, and is one of the important indicators of lubricating grease

Technical performance:

● Inner diameter of grease cup: Φ 9.92mm

● Fat cup height: 12mm

● Drip hole: Ø 28mm

● Test tube: inner diameter Φ 11.1~12.7mm

● Work unit: Double hole

● Temperature gauge: Room temperature~300 ℃

● Temperature gauge division: 1 ℃

● The measuring range of the instrument is up to 270 ℃

● Oil cylinder: 600ml beaker capacity

● Heater: power of 800W

● Mixing motor: speed 120r/min

● Temperature regulation method: stepless solid-state regulator for temperature regulation

● Power supply: 220V 50Hz

● Instrument size: 300 * 360 * 500

● Weight: 10kg

● Customer provided: Heating medium (silicone oil)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
