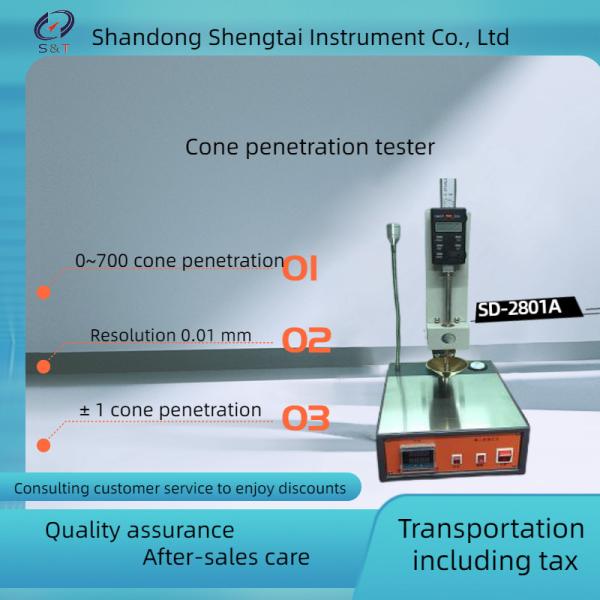

SD-2801A cone penetration tester is designed and manufactured
according to the technical requirements and relevant regulations of
the People's Republic of China standard GB/T269 "Grease and
petroleum grease cone penetration determination method". It is
mainly suitable for testing the cone penetration of grease.
The instrument can also be used for solid fine grain, powder,
colloid, frozen materials, as well as cheese, sugar gum, butter,
cream, fermented materials and other food raw materials inspection,
in food industry, traffic and highway engineering and other
industrial departments can be widely used.
ASTMD217Standard Lubricating Grease Cone Penetration Tester SD2801A
Cone Penetrometer ASTMD217Lubricating Grease Cone Penetration
Tester
ASTMD217Lubricating Grease Cone Penetration Tester
Lab GB/T269Lubricating Grease Cone Penetration Testing Equipment
Standard Penetration Test ASTMD217Dynamic Grease Cone Penetrometer
Standard Test Methods for Cone Penetration of Lubricating
Lubricating Grease Cone Penetration Tester ASTM D217
I. Main technical features
1, the use of digital display to display the taper value, intuitive
and eye-grabbing.
2. Digital display of cone entry time control device.3, With
lifting frame coarse adjustment, fine adjustment function, easy
adjustment, accurate needle.
II. Main technical parameters and indicators
| measuring range | 0 ~ 700 cone degree |
| the time error | less than ±0.1 seconds; |
| coning accuracy | ±1 coning degree |
| standard | national standard GB/T269 |
| Instrument size: 340*282*515 weight: 11kg |
| Timing controller | Time can be set according to their own needs, the time error is
less than ±0.1 seconds; |
| Resolution | 0.01mm |
| Temperature control accuracy | 25±0.1ºC (Note:The ambient temperature shall not exceed 20 ºC) |
| Temperature control mode | High accuracy digital temperature controller |
| Constant temperature bath | Hard glass bath |
| Working power supply | 80W |
| Standard needle | 2.5±0.05g |
| Stirring | automatically stirred by a magnetic stirrer |
| Standard cone | 102.5±0.05g |
| Needle holder | It can be adjusted roughly and finely. Convenient toad just and
exact to aim the sample |
| Others | Equipped with a cold light source and a magnifier; Convenient for
operation and observation |
Packing list:
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Instrument host | set | 1 | |
| 2 | Standard cone | piece | 1 | |
| 3 | Connecting rod | piece | 1 | |
| 4 | Sample holder | piece | 1 | |
| 5 | Fuse 5A(∮5×20) | piece | 1 | |
| 6 | Power cord(250V 6A) | piece | 1 | |
| 7 | instructions | copy | 1 | |
| 8 | Certificate warranty card | copy | 1 | |
Shandong Shengtai Instruments Co., Ltd. is specialized in the
research and production of experimental testing instruments and
industrial testing instruments. It is a professional instrument
company integrating instrument research and development,
manufacturing, sales and service. Its products are widely used in
food, flour, grain and oil, Feed, electricity, petrochemical,
industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the
"first-class service, customer first" as the purpose, "reasonable
price, honesty and trustworthiness" as the business policy. Adhere
to technical innovation, with rich knowledge of the technical team
and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive
enterprises in the industry, with the strength of technology
research and development, professional technical knowledge and
innovative design concept, in the model improvement, Significant
technical breakthrough has been achieved in the development of
function expansion and intelligent control system.
OUR service of needle penetration tester
After-sales service commitment, our company to sell the product
after-sales service commitment: warranty period of one year,
long-term technical support outside the warranty period. During the
warranty period, the seller shall bear the cost of the replacement
of the equipment, the freight and maintenance of the instrument;
outside the warranty period, the seller shall waive the maintenance
fee and charge only the cost of the basic materials and freight
charges when the instrument is malfunctioning and the seller shall
not charge the maintenance fee during the warranty period.
Packaging & Delivery of needle penetration tester
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood
board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your
goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
