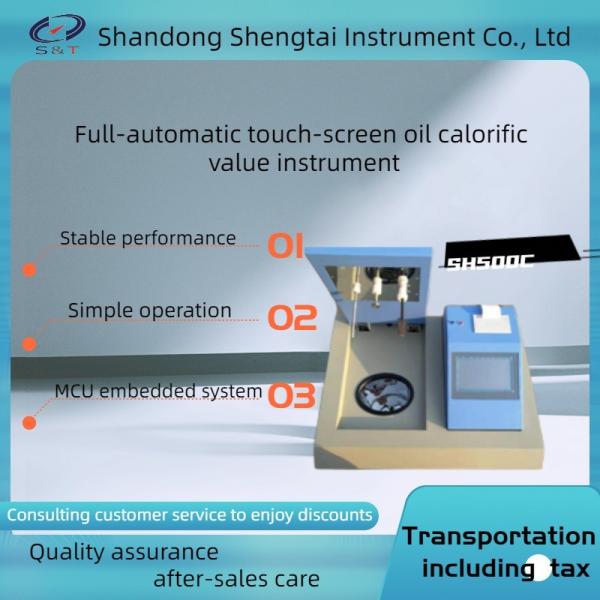

SH500C Automatic touch screen oil calorific value meter in
accordance with GB/T 213-2008 and GB/T384.
It is mainly composed of constant temperature calorimetry system
and MCU embedded system. It is a highly automatic heat measurement
instrument automatically controlled by the intelligent MCU embedded
system and capable of data processing.
The instrument is mainly used for the determination of the
calorific value of combustible materials such as coal, petroleum,
chemical industry, food and wood.
New Type Tp-5000c Microcomputer Automatic Calorimeter
ASTM D240 Microcomputer Automatic Calorimeter
ASTM D240 Auto-Calculating Microcomputer Oxygen Bomb Calorimeter
Main features
The embedded system is composed of intelligent MCU, which has the
advantages of simple structure, reliable performance and strong
anti-interference ability.
1.Adopt imported high-precision components to achieve
high-precision temperature measurement.
With the complete and unique water injection and drainage and
calorimetry system of the instrument, the heat capacity of the
system can be automatically calibrated, and the calculation program
carefully compiled greatly improves the measurement accuracy.
2.Adopt color touch screen display, full Chinese display, good user
interface.
Automatic control of measurement process.
Print the analysis base shell, analysis base high, dry base high,
analysis base low, receive low base calorific value, the result is
clear and clear.
3.Adoption of unique tracking and correction technology, so that
the instrument on the environment requirements are relatively
loose, improve the test accuracy, and ensure the stability of long
time operation.
4.The inner cylinder adopts electric stirring of sheet paddle;
Adopt fuse type cotton thread ignition mode, high reliability, easy
operation.
5.The time temperature curve is drawn during the experiment, which
is helpful to observe the experiment process.
6.The operation is fully automated, the manual need to do is only
weighing, loading and oxygenation, the instrument automatically
complete quantitative water injection, automatic mixing, ignition,
output printing results, drainage and other work.
7. Single pump replacement injection and drainage, eliminate the
original double pump model drainage pump easy to plug the problem,
and no need to adjust the water injection time
Main technical indicators
| Heat capacity | about 10000 J/K |
| Oxygen bomb | working pressure (oxygen filling) : 2.8 ~ 3.0MPa, the maximum
3.2MPa Pressure test (water pressure) : 20.0MPa Quality: 2.5 Kg Volume: 300 ml Overall dimension: Φ86mm ×181mm |
| Repeatability: | ± 30J/K |
| Capacity of external water cylinder | about 45L
|
| Inner water cylinder capacity | about 2100mL
|
| Ignition mode | Fused cotton thread ignition |
| Temperature resolution | 0.0001℃ |
| Measurement accuracy | in line with the national standard GB/T 213-2008 |
| Machine power |
< 300W in ignition state |
| Use environment | temperature 0-40℃ humidity: ≤80% |
| Ignition voltage | AC24V |
| Voltage | AC220V ± 10% 50Hz |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Calorimeter host | set | 1 | |
| 2 | Oxygen bomb | piece | 1 | |
| 3 | Oxygenator | piece | 1 | |
| 4 | Oxygen bomb rack | piece | 1 | |
| 5 | crucible | piece | 2 | Vulnerable spare parts |
| 6 | 10mL syringe | piece | 1 | |
| 7 | Rubber sealing ring | set | 2 | One set of oxygen filling instrument and one set of oxygen bomb
Vulnerable spare parts |
| 8 | Ignition wire | piece | 1 | 0.18mm Ni-Cr wire, consumables |
| 9 | Cotton thread | piece | 1 | consumables |
| 10 | Benzoic acid | piece | 10 | consumables |
| 11 | Printing paper | piece | 2 | consumables |
| 12 | power cord | piece | 1 | 250V 6A |
| 13 | instructions | copy | 1 | |
| 14 | Certificate warranty card | copy | 1 | |
