ST120B automatic feed hardness tester is mainly used in automatic
testing hardness of grain and feed .It is applied to feed company
,agricultural college agricultural products quality inspection
department, grain and oil company, and so on.

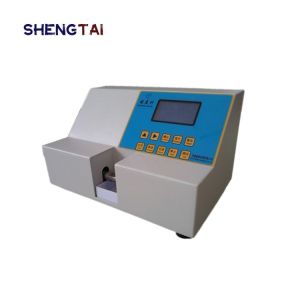

Automatic Grain / Pellets Hardness Tester
Automatic Grain and Feed Hardness Tester
feature:
It adopts the high precision pressure sensor circuit, single chip
microcomputer control, blue LCD display. Easy operation, and
display directly. Motor feed mechanism to be automatic measurement
with uniform force, avoid the error by the uneven force every time.
The machine can automatically calculate the maximum, minimum,
average value and Standard deviation data, etc. Test result can
print, and also can choose software to introduce it to the company
database. To achieve sharing and high efficience.
Theory:
When arrived in the most damage ,the grain or feed automatic broken
.At that time ,record the hardness value of grain or feed. With
convenience operation and measurement ,it supply reliable basis to
control the hardness of grain or forage.
Technical parameter:
Printer: Thermal miniature printer (optical)
| Max measuring force | 20KG(40kg) |
| Max measuring diameter | 20mm |
| Minimum measuring diameter | 2mm |
| Measuring accuracy | ±0.2%(kg) |
| Resolution | 0.01Kg(0.098N) |
| Input power | 15W |
| Power supply | 220V±10% 50Hz |
Instrument size: 300 * 200 * 185mm Package size: 360 * 260 * 260mm |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Spare electronics | 1 | Piece | |
| 3 | Power cord | 1 | Piece | |
| 4 | instructions | 1 | Copy | |
| 5 | Certificate warranty card | 1 | Copy | |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the
research and production of experimental testing instruments and
industrial testing instruments. It is a professional instrument
company integrating instrument research and development,
manufacturing, sales and service. Its products are widely used in
food, flour, grain and oil, Feed, electricity, petrochemical,
industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the
"first-class service, customer first" as the purpose, "reasonable
price, honesty and trustworthiness" as the business policy. Adhere
to technical innovation, with rich knowledge of the technical team
and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive
enterprises in the industry, with the strength of technology
research and development, professional technical knowledge and
innovative design concept, in the model improvement, Significant
technical breakthrough has been achieved in the development of
function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product
after-sales service commitment: warranty period of one year,
long-term technical support outside the warranty period. During the
warranty period, the seller shall bear the cost of the replacement
of the equipment, the freight and maintenance of the instrument;
outside the warranty period, the seller shall waive the maintenance
fee and charge only the cost of the basic materials and freight
charges when the instrument is malfunctioning and the seller shall
not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood
board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your
goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
