Grease Worker According to GB/T269-91Grease and petroleum grease
cone penetration determinationASTM D217 ISO2137 Petrol
SH269 Grease Worker according to GB/T269-91 "Grease and petroleum grease
cone penetration determination" test standard requirements in the
specified test conditions, after the change of mechanical shear
work to judge the mechanical stability of grease, to extend the
work cone penetration or shear stability, the unit is 0.1mm.

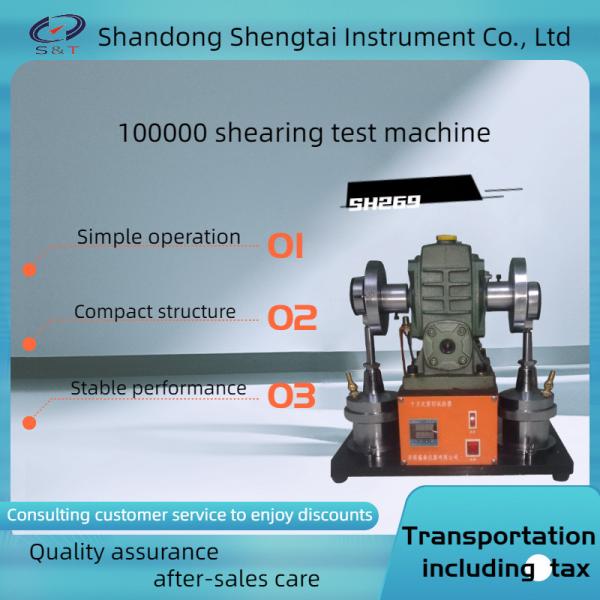

ASTM D217 ISO2137 Petroleum Products Lubricants Tester
Mechanical Grease Worker
| Type: | ten thousand times shear testing machine |
| Weight: | 50Kg |
| Standards: | GB/T269, ASTM D217, ISO 2137 etc |
| Digital Count: | 0~10 Million Times |
| Shear Rate: | 60 Times/Min or 100000 Times/Min |
| Transport Package: | Standard Export Packing |
Performance characteristics:
1 the use of motor drive reducer to achieve 60 times/min shear rate
Extended coning test and optional shear stability test
The display can display the cutting times by itself
4 Counter can count by itself
5 the whole instrument structure is compact and complete
A special cooling fan is installed behind the motor to ensure the
continuous operation of the whole instrument
1) Motor: Horizontal single-phase capacitor starting motor speed:
1400 RPM
2) Coupling: plum shaped elastic coupling
3) Worm gear reducer: double outlet gear reducer with transmission
ratio of 25:1 is adopted. A pair of eccentric mechanisms are
installed on the cochlear shaft on both sides of the reducer.
4) Shear rate: 60 times/min
5) Maximum counting capacity: 99999
6) Thermometer: the use of bimetal thermometer, the range of 0 ~
50℃, grading for 0.5℃
7) grease working stroke of the work: 67-71 - mm, orifice plate on
each hole diameter: 6.35 + 0.13 Ф
8) Power supply: AC220, 50Hz
