SD4929A grease drop point tester is designed and manufactured
according to the requirements of the People's Republic of China
standard GB/T4929 "Grease drop point determination method". It is
suitable for testing the drop point of grease according to the
GB/T4929 standard.
Purpose: This instrument is suitable for measuring the drop point
of grease according to GB/T4929, ISO2176, ASTMD566, TP31, "Grease
drop point determination method".

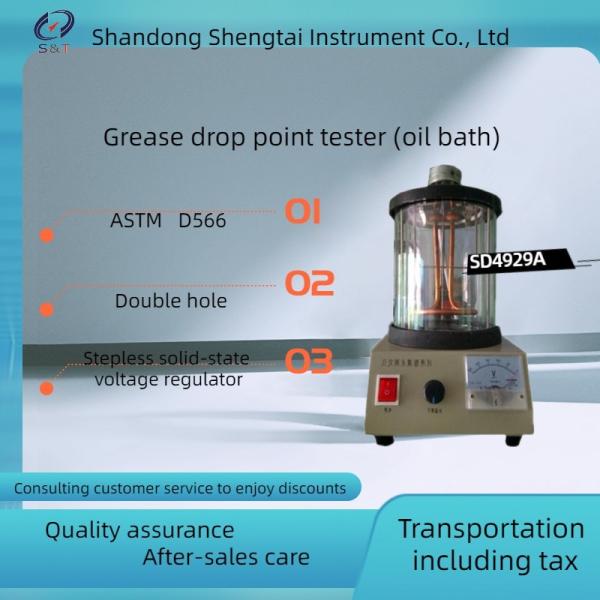

Dropping Point Tester (Oil Bath) SD4929A
Dropping Point Tester (Oil Bath) for Lubricating Grease ASTM D566
SD4929A Dropping Point Tester (Oil Bath)
Portable Lubricating Grease Oil Bath Dropping Point Tester ASTM
D566
CE Certified Laboratory ASTM D566 Lubricating Grease Dropping Point
Apparatus
Technical performance:
| 1. Power supply: | AC 220 V±10%, 50 Hz; |
| Grease cup: | Made of chrome plated brass. Its inner diameter is about 9.92 mm
and the diameter of orifice for dropping oil is 2.8 mm. The height
of the cup is about 12 mm. |
| Test tube: | A tube made of heat-resistant glass with rim. Its inner diameter is
11.1 mm to 12.7 mm. There are three indentations at about 19 mm
from the bottom, equally spaced on the circumstance. These
indentations are used for supporting the grease cup. |
| Thermometer: | room temperature ~300 ºC, scale value is 1 ºC. The measuring range
of the instrument is to 270 ℃ |
| Cylinder: | beaker with volume of 600ml |
| Stirring motor: | Rotating speed 60 RPM |
| Metal bath heating power | 800W |
| Relative humidity: | ≤85% |
| Mixing motor: | speed 120r/min |
| Temperature regulation mode: | temperature regulation by stepless solid state voltage regulator |
| Dimension: 300mm×3600mm×500mm weight: 10kg |
Provided by the customer: heating medium (silicone oil)
Packing List
| No | Name | Quantity |
| 1 | Lubricating grease drop point tester | 1 |
| 2 | Grease cup | 2 |
| 3 | vitro | 2 |
| 4 | Rubber plug | 2 |
| 5 | Guide ring | 2 |
| 6 | Thermometer (-5 to 300 ° C, index value 1 ° C,) | 2 |
| 7 | Metal bar | 1 |
| 8 | instructions | 1 |
| 9 | Certificate of conformity warranty card | 1 |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the
research and production of experimental testing instruments and
industrial testing instruments. It is a professional instrument
company integrating instrument research and development,
manufacturing, sales and service. Its products are widely used in
food, flour, grain and oil, Feed, electricity, petrochemical,
industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the
"first-class service, customer first" as the purpose, "reasonable
price, honesty and trustworthiness" as the business policy. Adhere
to technical innovation, with rich knowledge of the technical team
and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive
enterprises in the industry, with the strength of technology
research and development, professional technical knowledge and
innovative design concept, in the model improvement, Significant
technical breakthrough has been achieved in the development of
function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product
after-sales service commitment: warranty period of one year,
long-term technical support outside the warranty period. During the
warranty period, the seller shall bear the cost of the replacement
of the equipment, the freight and maintenance of the instrument;
outside the warranty period, the seller shall waive the maintenance
fee and charge only the cost of the basic materials and freight
charges when the instrument is malfunctioning and the seller shall
not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood
board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your
goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
