automatic Vaseline drop point meter ointment drop point tester
Chinese pharmacopoeia England pharmacopoeia

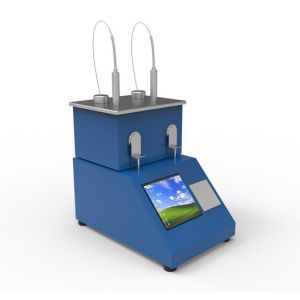

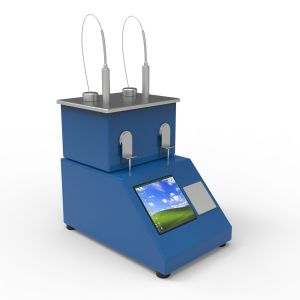

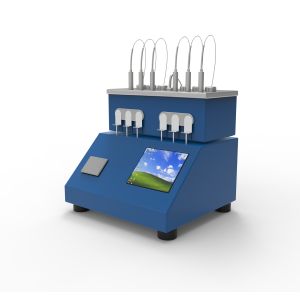

ST212B fully automatic Vaseline ointment drop point meter meets the
2020 Chinese pharmacopoeia standard and England pharmacopoeia ,
with microprocessor as the core, it integrates mechanical, photo
electronic and micro detection technology, and has the functions of
automatic temperature rise control, automatic adjustment of
temperature rise rate, automatic detection and recording of drop
point data, automatic printing and output, etc., to complete the
measurement of drop point.
| heating | Metal bath heating, no noise, no pollution, fast heating rate; |
| Temperature measurement range | :room temperature ~ 400 ℃ |
| Resolution | 0.1℃ |
| Typing | Chinese or English character printing |
| Printer | Small thermal printer |
| Test sample | Vaseline ointment |
| Detection mode | imported high-precision optical fiber detection |
| Test Item | drop point Test |
| Curve display | Display the trend chart of temperature time curve |
| Result output | At the same time can be equipped with U disk output function,
output to the computer end for long-term storage |
Main Features and parameter
1.7 "touch screen display;
2.Imported temperature sensor to ensure accurate and stable
temperature measurement and control;
3.Metal bath heating, no noise, no pollution, fast heating rate;
4.High temperature resistant special optical fiber is used for
droplet detection.
5.Equipped with internal clock, no need to enter experimental date.
6.Applicable standards:Chinese Vaseline ointment 2020
7.Temperature measurement range: room temperature ~ 400 ℃
Resolution: 0.1℃
8.Number of test holes: 2
9.Ambient temperature: 10℃ ~ 35℃
10.Temperature control precision of metal bath: ±1℃
11.Environmental relative humidity: 30 ~ 80%RH
12.Power supply: AC220± 10% V 50HZ±1HZ
13.Power supply: less than 2KW
14.Typing: Chinese or English character printing
15.Printer: Small thermal printer
16.Detection mode: imported high-precision optical fiber detection
17.Curve display: Display the trend chart of temperature time curve
18.Storage: Experimental results can be stored in 199 groups of
historical data for easy query;
19.Result output: At the same time can be equipped with U disk
output function, output to the computer end for long-term storage
20.Output format: The output format of the usb flash disk is CSV or
Excel.
21.Standard printing: standard printing with micro printer
automatic measurement automatic thermal sensitive printing
22.Remote upgrade: With TCP network transmission function, software
remote upgrade can be carried out later
23.Data management: Can connect to limIS system
24.Data memory: Microcomputer instrument memory can be expanded to
16 gigabytes.
25.Account management: According to the password to set up the
account management layer, can set up the total account and
sub-account.
OUR service
After-sales service commitment, our company to sell the product
after-sales service commitment: warranty period of one year,
long-term technical support outside the warranty period. During the
warranty period, the seller shall bear the cost of the replacement
of the equipment, the freight and maintenance of the instrument;
outside the warranty period, the seller shall waive the maintenance
fee and charge only the cost of the basic materials and freight
charges when the instrument is malfunctioning and the seller shall
not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood
board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your
goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
