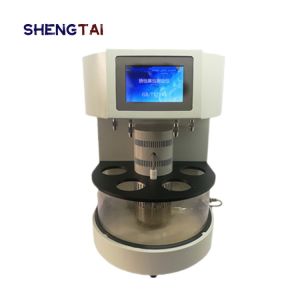

SH123 automatic liquid phase rust tester is designed in strict
accordance with GB / T11143 standard, and is first used to evaluate
the determination of adding inhibitor mineral oil and turbine oil
during water mixing; the liquid phase rust tester is equally
suitable for the determination of rust resistance of hydraulic oil
and circulating oil.
Liquid phase rust tester can be widely used in electric power,
petroleum, chemical industry, commercial inspection and scientific
research departments. GB / T11143 ASTM D665 standard for
determining metal corrosion ability and additive corrosion
resistance in lubricating oil, hydraulic oil, steam turbine oil and
other oils
| Product model | SH123 |
| Product Name | Automatic corrosion tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | Used to measure the corrosion resistance of lubricants, hydraulic
oils, turbine oil, and other greases to metals when they contain
water, and to evaluate the anti-corrosion performance of additives |
| Compliant with standards | GB/T11143 ASTM D665 |
| Simple technical features or parameters | Microcomputer automatic temperature control, automatic timing,
intuitive and simple operation. Four separate motors for mixing,
noiseless, safe and reliable |
ASTM D665 Standard Liquid phase rust tester
Standard for application of SH123 automatic corrosion tester
ASTM D665 Lubricating Oil Rust Preventing Property Test Apparatus
Lube Oil Liquid Phase Corrosion/ Rust Preventing Characteristics
Tester
ASTM D 665 Lubricating Oil Rust Preventing Characteristics Tester
Standard GB/T11143 ASTM D665 Standard for determining the corrosion
resistance of lubricants, hydraulic oils, turbine oils and other
oils to metals when containing water and for evaluating the
corrosion resistance of additives
The main features
- Adopt blue LCD large screen display, Chinese menu, no logo button.
- Microcomputer automatic temperature control, automatic timing,
intuitive and simple operation.
- Four motors separately stirring, no noise, safe and reliable,
compact size.
- It can meet the needs of oil refineries, power plants and
scientific research units, and is one of the essential instruments
for oil analysis and quality inspection
Technical parameters
| Power supply | AC(220±10%)V, 50Hz |
| Temperature control range | (room temp~100)℃ |
| Temperature control accuracy | ±0.1℃ |
| Temperature sensor | Pt100 |
| Temperature display | LCD display |
| Time display | Digital display |
| Sample stir rate | (1000±50)r/min |
| Sample testing posiotions | Four positions |
| Ambient temperature | (0~45)℃ |
| Relative humidity | ≤85% |
Dimension: 500mm×330mm×750mm Weight: about 25kg
|
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Beaker | 4 | piece | |
| 3 | Beaker lid | 4 | piece | |
| 4 | Test steel bar | 4 | piece | |
| 5 | Stirring rod | 4 | piece | |
| 6 | Alumina gauze | 6 | piece | |
| 7 | Power cord | 1 | piece | |
| 8 | Fuse tube | 1 | piece | |
| 9 | Instruction manual | 1 | copy | |
| 10 | Packing list | 1 | copy | |
| 11 | Certificate of qualification | 1 | copy | |
