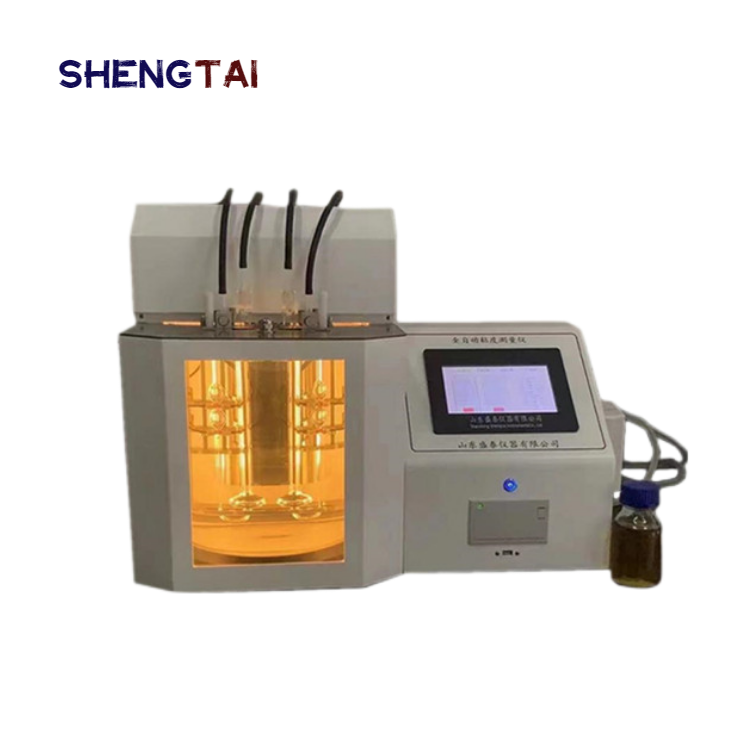

SH112G Full-automatic Ubbelohde kinematic viscometer is in
accordance with GB/T265 and GB/T1632-93 requirements, for oil and
polymer dilute solution of kinematic viscosity, viscosity and
viscosity of the test equipment, widely used in the pharmacopeia,
petroleum, chemical, scientific research, measurement and other
departments.
The working process of the instrument includes constant
temperature, detection, calculation, viscosity tube cleaning,
drying and report sheet printing.
| Product model | SH112G |
Product Name | Fully automatic Ukrainian viscosity tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | Testing equipment for kinematic viscosity, viscosity number, and
intrinsic viscosity of oil and polymer dilute solutions |
| Compliant with standards | GB/T265,GB/T1632-93 |
| Simple technical features or parameters | The instrument workflow includes constant temperature, detection,
calculation, viscosity tube cleaning, drying, and full process
automation of printing report forms. |
ASTM D445 Automatic Ubbelohde Kinematic Viscometer with Glass
Capillary
Automatic Viscometer for Testing Ubbelohde Kinematic Viscosity of
Oil
Instrument features:
1. Large size color touch screen display.
2. Using a 32-bit microprocessor as the control core.
3. The main components and electronic components of the instrument
are all imported devices, which have good stability.
4. The instrument has automatic timing function, automatic
calculation, automatic printing, automatic cleaning, automatic
drying, automatic USB flash drive output, and other functions.
5. Temperature control is fast and stable, with a heating rate
of>5 ℃/min.
6. Equipped with LED soft light, with uniform light filling for
easy observation.
7. It has the function of storing viscometer parameters.
8. Microprocessors can expand memory to 16G
9. Storage method: The experimental results can be stored in 199
sets of historical data for easy query;
10. Result output: It can also be equipped with a USB flash drive
output function, which can be output to the PC for long-term
storage
11. Output Format: The output format of the result USB drive is CSV
or Excel.
★ 12. Remote upgrade: With TCP network transmission function,
software remote upgrade can be carried out later (optional)
★ 13. Data management: can be connected to the LIMIS system
(optional)
Main technical indicators
| Range | room temperature ~ 100℃; |
| Temperature control precision | ±0.1℃ |
| Measurement quantity | 2 sets. |
| Basic parameters | Heating speed: in line with GB/T265 standard; |
| Working viscometer | Ubbelohde capillary viscosity tube |
| Viscometer fixture: | Made of all 304 stainless steel material and resistant to high and
low temperature graphite sliding bearing device |
| Timing range | 0~9999.9s |
| Timing accuracy | ±0.1s |
| Ubbelohde viscosity measurement range: | 0.6-1000mm2/s (other ranges can be customized) |
| Power consumption | 2000W |
| Dimensions:450*380*550mm weight: 32kg |
| Packaging size: 520 * 480 * 650mm weight:39kg |
| Power supply | AC220V±10%,50Hz |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Full-automatic viscosity tester | 1 | set | |
| 2 | Electric aspirator | 1 | set | |
| 3 | Special viscosity tube | 4 | piece | Comply with GB/T11137 |
| 4 | Sample injector | 1 | piece | |
| 5 | Printing paper | 2 | piece | |
| 6 | Certificate | 1 | copy | |
| 7 | Instructions | 1 | copy | |
