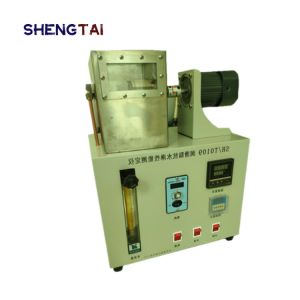

ASTMD1264 Lubricating Grease Water Resistance Tester SH116 Tested
At 38 ℃ And 79℃
SH116 grease anti-spray performance tester according to
SH/T0109-92, ASTMD1264 "grease anti-spray performance measurement
method" standard to determine the resistance of grease to water,
for the specified experimental conditions, at 38℃ and 79℃ test to
evaluate the grease resistance out of the bearing capacity of the
new product.
Lubricating Grease Water Resistance Tester Lubricant Water Washout
Characteristics Analyzer Oil SPRAY Apparatus
Performance characteristics:
1, the water bath temperature through the PT100 sensor (resistance
temperature measurement package) input to the temperature
controller, temperature controller internal operation circuit
processing, obtain a control signal, the control signal output, so
as to complete the heating control
2, the amount of water jet can be directly controlled by
circulating pump, large flow valve, nozzle, etc
3, using electric heating rod heating mode, heating speed is fast
4, according to the standard to choose ball bearings, the timer can
be accurate to 0.1S
ASTM D1264 Lubricating Greases Water Washout Characteristics Tester
Technical parameters:
| Display | |
| Temperature control range | Room temperature-100ºC |
| Temperature control accuracy | ±0.1ºC |
| Water tank capacity | ≥750ml |
| Water flow accuracy | 5±0.5ml/s (two valve regulation) |
| Bearing speed accuracy | 600±30r/min |
| Temperature sensor | Platinum resistance (imported grade A PT100) |
| Bearing specification | type 204 |
| Power supply | AC220V±20%, 50HZ±10%(can be customized) |
| Power | 600W |
| Working temperature | Room temperature-45ºC |
| Working humidity | ≤85% RH |
| Dimensions | 300×265×425 (mm) |
| Weight: | 46kg |
| Flume temperature control accuracy | ±2℃ |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | power cord | 1 | Piece | |
| 3 | Bearing | 2 | Piece | |
| 4 | Instructions | 1 | copy | |
| 5 | power cord | 1 | Piece | |
| 6 | Packing list | 1 | copy | |
| 7 | Certificate warranty card | 1 | copy | |
